We have one New Kinze 3140, 8 row wide, stack fold planter listed in Used Planters at Special Pricing!
Last modified:
March 13, 2009
For all models click on the logo below and view all the models in more detail!
"Corn Planters"
essential farm equipment
Specifications
Type:
Pull Type - Rigid
Sizes/Row Spacings:
4 Row N (30") (76.2 cm)
6 Row N (30") (76.2 cm)
Frame Construction:
7" x 7" x 3/8" steel tubing (17.8 x 17.8 x 95cm). Hitch formed
and welded with adjustable, malleable iron double hitch clevis
with 1 5/16" (3.3 cm) hitch pin hole size.
Options:
 |
Double Frame Conversion Packages |
|
Solid Row Interplant Packages |
|
Interplant Monitor Packages |
|
Liquid Fertilizer Packages |
|
Squeeze or Piston Pump Packages |
|
Double Disc, Notched Single Disc or HD Single Disc |
|
Fertilizer Opener Packages |
|
Low Rate Check Valve Packages |
|
Dry Fertilizer Packages |
|
Double Disc, Notched Single Disc or HD Single Disc |
|
Fertilizer Opener Packages |
|
Electronic Seed Monitors (KPM I or KPM II) |
|
Dual Valve Conversion Packages |
|
Half Rate (2 to 1) Drive Reduction Packages |
|
Row Unit Extension Bracket Packages |

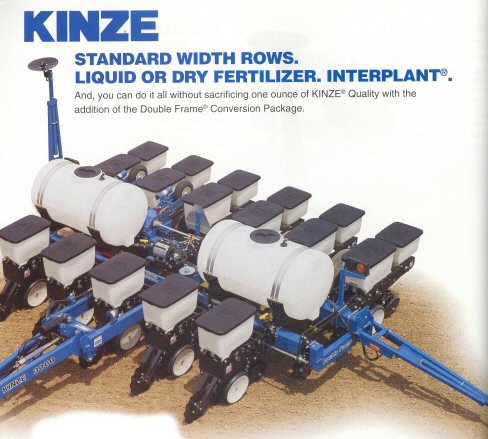

KINZE Double Frame 4 or 6 Row N (30") Corn Planters

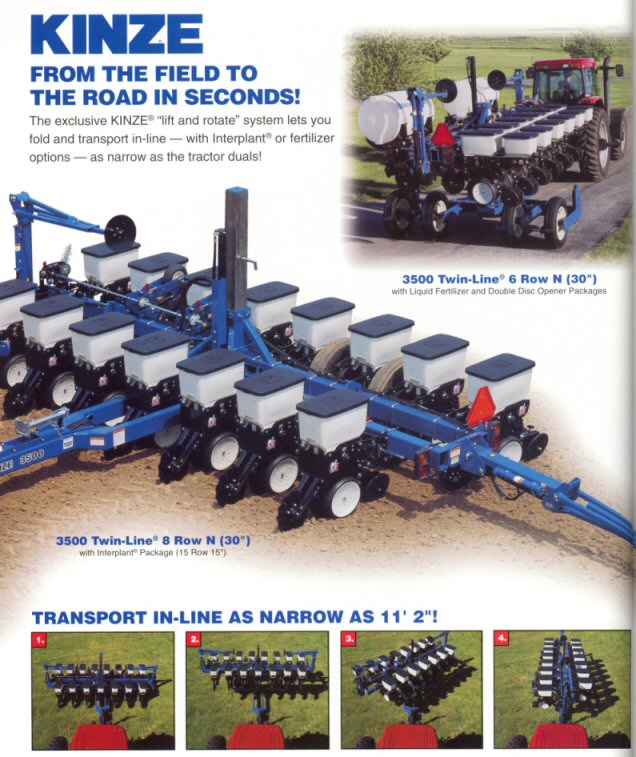

3500 Twin-Line 6 and 8 Row N (30") Corn Planters
Specifications
Type:
Pull Type - 3-section flex. Rotating main frame for
transport - hydraulic operation
Sizes/Row Spacings:
12 Row N (30") (76.2 cm)
16 Row N (30") (76.2 cm)
Frame Construction:
Parallel 5" x 7" (12.7 x 17.8 cm) steel tubing; 3- section
double frame with 7 degree flex up or down per win.
Four row center section. Rows per wing: four on 12
Row and six on 16 Row. Hydraulic telescoping hitch
with adjustable, malleable iron single hitch clevis with
1 7/8" (4.8 cm) pin hole.
Options:
|
Solid Row Interplant Packages |
|
Interplant Monitor Packages |
|
Liquid Fertilizer Packages |
|
Squeeze or Piston Pump Packages |
|
Double Disc, Notched Single Disc or HD Single |
|
Disc Fertilizer Opener Packages |
|
Low Rate Check Valve Packages |
|
Dry Fertilizer Packages |
|
Double Disc, Notched Single Disc or HD Single |
|
Disc Fertilizer Opener Packages |
|
Electronic Seed Monitors (KPM I or KPM II) |
|
Rear Trailer Hitch |
|
Half Rate (2 to 1) Drive Reduction Packages |
|
Row Unit Extension Bracket Packages |
|
Rock Guard Packages |
|
Point Row Clutch Packages |
|
Piston Pump Mount and Drive Packages |
3600 Twin-Line "Y" 12 and 16 Row N (30") Corn Planters
Kinze Planters Indispensable Farm Equipment
