from Lititz, Pennsylvania







Pequea Trailers
Last modified: March 01, 2005

Sales Page

Come to Binkley & Hurst Bros. for your trailer needs!  Need to haul your construction equipment?

DECKOVERS           GOOSENECK           SKIDSTEER          UTILITY            DUMP

PEQUEA TRAILERS BUILT FOR  BINKLEY & HURST BROS. INC.
 MEDIUM DUTY DECK OVER TRAILERS TRAILER SPECIFICATIONS

Model 716DO 1018DO I-10
Length 21'- 4" 25'- 2" 30'- 4"
Overall Width 96" 101" 102"
Deck Width 96" 101" 102"
Deck Hgt. w/bv. Tail 17' 20' 25'
Beaver Tail 3' 4' 5'
Deck Height 2'5-3/4" 2' 7-1/4" 2'11"
Hitch Height 16" 20" 25"
Overall Height 2'11-1/2" 3' 3-1/2" 2'8"
Axles (2) 3500 ea. 6000 ea 10,000 lbs. ea
Suspension Slipper Leaf Springs TORFLEX AXLES
Wheels 5 bolt, 15"
White spoke		 6 bolt, 15"
Silver Mod		 8 bolt, 17.5"
IND PLATE WHEEL
Tires 205/75R
1820 load cap.		 225/75R
2540 load cap		 215/75R
Load Range H
Hitch

Adjustable or pintle
Jack cap. 10,000 lbs.
GVW rating 7,000 lbs. 10,000 lbs. 20,000 lbs.
Trailer Weight 2,200 lbs. 2,950 lbs. 5,100 lbs.
Brakes ELE. Standard

PEQUEA DECKOVER TRAILERS
Deck Over Trailers Models 716DO & 1018DO



Shown:  Model 1018DO with mesh ramps

These all-purpose trailers fit most agricultural, industrial, and landscape needs.  Big, wide and flat, they stand up to any medium-duty hauling.

In addition to the standards found on all trailers in the I.C.L category, the Deck Over Series include the following standard features:

Model 1018DO
- 4' Beaver Tail
- Structural "C" channel steel frame
- Chain & binder storage

Model 716DO
- 3' Beaver Tail
- Tubular steel construction


STANDARD FEATURES
All Deckover models

- Heavy duty hitch, 2-5/16" ball or pintle
- Breakaway hitch
- 10K top wind drop leg jack
- Full length rub rail
- Stake pockets every two feet
- Full width flat deck
- All welded reinforced frame
- 2" pressure treated deck
- Electrostatically primed & painted
- Internally grounded modular wiring harness
- Torflex axles







3' Beaver Tail on Model 716DO provides reduced angle for loading
STANDARD BINKLEY & HURST BROS FEATURES
All Deckover Models

Model 1018DO
Electric brakes 245/75R16E
Tires on 8 lug wheels 12000 lbs. cap.
Rear frame support stands
Adjustable Beaver Tail
Model 716DO
5 rib mesh or ladder ramps
electric brakes
Rear frame support stands 225/75-
15D tires on 6 lug wheels



1018DO Adjustable Beaver Tail Feature Std.
 - Corrugated diamond plate Beaver tail for easy & safe loading of equipment.
- Lift feature which extends usable flat deck surface by length of Beaver Tail

BINKLEY & HURST BROS. INC. SELLING PRICE

716DO*

DECKOVER with 14' Flat 3' Beaver Tail Stand Up Ramps 4' Ladder Bar

$3800.00*

1018DO

DECKOVER 16' Flat Deck 4' Flip Up Beaver Tail Slide in Ramps

$5000.00

1018DO

DECKOVER 16' Flat Deck 4' Beaver Tail Standup 4' Ramps

$4500.00



L E D LIGHTS ADD

$150.00



* Binkley & Hurst Bros. Inc. doesn't stock any of the above trailers

    Availability is 2 to 3 days provided Pequea has them in stock



PEQUEA GOOSENECK TRAILERS                                Great for hauling construction equipment!
Gooseneck Trailers Models G-10, G-12, G-14, & G-16

The Pequea G Series trailers offer you more features than you expect to find.  Designed to provide ease, safety and convenience for the operator, this series has unique advantages whether you are hauling hay or construction equipment.

In addition to the standards found on all trailers in the I.C.L. category, the G-series include the following standard features:

STANDARD FEATURES FOR ALL TRAILERS BUILT FOR BINKLEY & HURST BROS. INC.

- All welded "I" beam construction on G-14 & G-16 decks
- G-10 & G-12 have all welded structural "C" channel frames
- All models have tubular steel gooseneck

Model
G-10
G-12
G-14
G-16
Length
27' 9"
27' 9"
32' 9"
32' 9"
Overall Width
101"
Deck Width
96"
Deck Hgt. w/bv. Tail
20'
20'
25'
25'
Beaver Tail
4'
4'
5'
5'
Deck Height
2' 7 1/4"
2 9 1/4"
2'-10"
2' 11 1/4"
Hitch Height
34"
36"
36"
38"
Overall Height
6'
6' 2"
6' 3"
6' 4 1/2"
Axles (2)
6000 ea.
6000 ea.
7000 ea.
8000 ea.
Suspension
Slipper leaf springs
Wheels

6 bolt, 15"
white spoke
8 bolt, 16"
industrial
8 bolt, 16"
industrial
8 bolt, 17.5"
industrial
Tires

ST 225/75R
2540 load cap.
245/75R
3040 load cap.
LT 235/85R
3750 load cap.
215/75R
4750 load cap.
Hitch
2 5/16" vertical adjustable ball
Jack cap.
12,000 lbs.
GVW rating
10,000 lbs.
12,000 lbs.
14,000 lbs.
16,000 lbs.
Trailer Weight
3,200 lbs.
3,350 lbs.
4,500 lbs.
4,750 lbs.
Brakes
Standard

- Gussets welded at stress points
- Heavy duty torflex axles
- Tandem heavy duty axles
- Large tires on industrial wheels
- DOT approved reflector tape
- Sealed, rubber mounted, plug in lights
- Modular factory wiring harness
- Unique lockable tool boxes
- Chain and utility storage racks
- "Step-up" with hand hold
- Electronically primed & painted
- Breakaway hitch
- Safety chains
- Heavy duty 12 K lbs. drop leg jack
- Well shielded, internally grounded, wiring
- 2" pressure treated decking
- Adjustable vertical ball hitch

Standard Adjustable Beaver Tail Feature
- Corrugated diamond plate Beaver Tail for easy & safe loading of equipment
- Lift feature which extends usable flat deck surface by length of Beaver Tail





Ramps stowaway under bed on optional adjustable Beaver Tail.



BINKLEY & HURST BROS INC. SELLING PRICE

G10  16' FLAT 4' FLIP-UP BEAVER TAIL TORFLEX AXLES
 245/75R16E TIRES 10,000 OR 12,000 GVWR 		 $5,400.00
G12  16' FLAT 4' FLIP-UP BEAVER TAIL TORFLEX AXLES
 235/75R16G TIRES 14,000 GVWR     		  $5,850.00
G14  20' FLAT 5' FLIP-UP BEAVER TAIL TORFLEX AXLES
 235/75R16G TIRES 14,000 GVWR   		 $6,200.00
G16  20' FLAT 5' FLIP-UP BEAVER TAIL TWO PARKING JACKS TORFLEX AXLES
 215/75R17.5H TIRES 16,000 GVWR  		 $7,700.00
   L E D Lights Add $150.00



PEQUEA SKIDSTEER TRAILERS

Skidsteer Trailers Models 1012SST, 1014SST, 1016SST, & 1018SST

Built to last, these trailers are ideal for agricultrual and landscape use.  Designed with fenders outside of a full width, low profile deck, these trailers allow maximum space for loading.

In addition to the standards found on all trailers in the I.C.L. category, the Skidsteer Series include the following standard features:

STANDARD FEATURES FOR ALL TRAILERS BUILT FOR BINKLEY & HURST BROS. INC.

Optional Features
• Ladder (4' or 6') or mesh ramps
- Heavy duty hitch, 2-5/16" ball or pintle
- Breakaway hitch
- 10K top wind drop leg jack
- Chain & jack storage
- Full width flat deck
- All welded reinforced frame
- 2" pressure treated deck
- Electrostatically primed & painted
- 4" channel welded under deck beams every 2'
- Internally grounded modular wiring harness
- Rub rail & stake pockets
- Electric brakes on all four wheels
- Torflex axles with 8 lug hubs
- 235/85R16 E tires
- 12000 GVWR cap with 10,000 reg. GVWR



BINKLEY & HURST BROS. SELLING PRICES:

1016SST  16' Skid Steer Trailer $3,800.00
1018SST  18' Skid Steer Trailer $4,000.00
1020SST  20' Skid Steer Trailer $4,200.00



DUMP TRAILERS

The C-2500 is generous in both dimension and weight handling capacity. perfect for commercial applications.


STANDARD FEATURES

• (2) 6K lbs. 4" dexter axles
• Scissor hoist w/ 10K lbs. lift capacity
• 10 gauge steel deck
• 6' ladder ramps
• 2 way tail gate
• 24" sides w/ 10 stake pockets
• 7K lbs. drop leg jack
• Self contained hydraulic unit

Note: Battery not included.

 OPTIONAL FEATURES

• 12K or 14K lbs. GVW
• 14' box
• Tor-flex Dexter axles
• LED lights
• Pintle hitch
• 10K jack 		MODEL C1500 OPTIONS

• Split gate
 • Split gate w/ramps
• Landscape gate
• Side extensions
• Rear support stands
• Spare tire mount

Model C2500 shown above in use.



DUMP TRAILER SPECIFICATIONS

Model
C-1500
C-2500
Overall Length
15'2"
18'2"
Overall Width
98"
102"
Deck Length
10'
12'
Deck Width
74"
79"
Deck Height
20"
26"
Hitch Height
12" - 20"
18" - 22"
Beaver Tail

N/A
Mainframe
5" Channel @ 6.7 lbs.
6" Channel @ 10.45 lbs.
Cross-Members
3" Channel @ 4.1 lbs.
4" Channel @ 5.4 lbs.
Hitch
2 5/16" Adjustable
Axles
(2) 5,200 lbs. ea. w/4" drop
(2) 6,000 lbs. ea. w/4" drop
Brakes
Electric Brakes
Suspension

Slipper Leaf Springs

Wheel Size
6 Bolt 15" Silver Mod
Tires
225/75 LR "D"
Jack Capacity
7K Drop Leg
GVW
10,000 lbs.
Trailer Weight
2,700 lbs.
3,600 lbs.
Floor
11 Gauge
10 Gauge
Stake Pockets
11
13
Cylinder
(1) 4x30
(1) 5x16 hyd Scissor Hoist
Dump Angle

48"
47"
Box Capacity
3.8 Cubic Yard
5.4 Cubic Yard

Dump trailers are very handy to have, ask Binkley & Hurst Bros. Inc. for new models coming out!

BINKLEY & HURST BROS. SELLING PRICES:

C2500 DUMP TRAILER 6.5’ X 12’ WITH 2 WAY TAIL GATE RAMPS AND SCISSORS HOIST ELEC. BRAKE, TORFLEX AXLES, 235/75R16E TIRES, 10,000 GVWR $6300.00
C2500 DUMP TRAILER 6.5’ X 14’ WITH 2 WAY TAIL GATE RAMPS AND SCISSORS HOIST ELEC. BRAKE, TORFLEX AXLES, 235/75R16E TIRES, 12,000 GVWR  $6800.00
C1500 DUMP TRAILER 6’ X 10’ WITH 1 WAY TAIL GATE NO RAMPS AND 1HYD CLY HOIST ELEC. BRAKE, SPRING AXLES, 225/75R16D TIRES, 10,000 GVWR ONLY $4800.00
  L E D LIGHTS  $150.00

UTILITY TRAILERS

LIGHT DUTY TRAILERS

  Light Duty Utility Trailers Models 510, 610, & 612S

Model 612S

OPTIONAL FEATURES

• 4' 8" or 6' landscape ramps
• Spring assist
• Electric brakes
• 2 5/16" ball or pintle hitch
• Radial tires
• Choice of color (Red, Green, Blue, or Yellow)

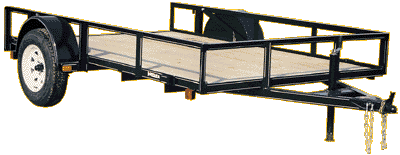

Model 612S
 Shown with optional mesh ramps

STANDARD FEATURES
• Heavy duty A-frame construction
• 2K lbs. set back jack
• 2" pressure treated deck
• 3,500 lbs. Dexter axle
• Safety chains





These versatile tilt or rigid frame trailers
are the easiest to use in the industry
and are designed to function efficiently
for any light duty hauling job.











Diamond Plate
Beaver Tail.
Diamond plate beaver tail on tilt trailers allows for smooth, easy loading.

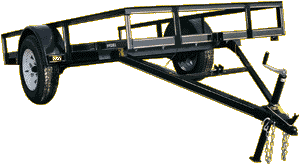

Light Duty with tilt frame



Lots of practical options!

Make your choice!

Standard "set back" jack allows driver to lower tailgate without unhitching.

Optional coil spring assist for 6' ramps. Eases raising and lowering ramps.





Model
510
610
612S
Length
14'
14'
15' 4"
Width
7'
8' 1"
Height
2' 7"
2' 7"
2' 9"
Hitch height
15"
15"
16"
Tires
205/75
Axle rating
3500
Wheel size
15"
Coupler size
2"
Weight
800
999
1400
Bed height
18"
18"
19"
Bed width
5' 3"
6' 4"
Bed length
10'
10'
12'
Brakes
Optional
GVW rating
2999 lbs.
2999 lbs.
2999 lbs.
Ramps
4' 8"
4' 8" or 6"
Jack


2K Top wind w/ set back mounting



______________________________________________________________________________



Tandem Axle Utility Trailers Models 612T, 614T, 616, 618, 620

OPTIONAL FEATURES

• 4'-8" or 6' landscape or ladder ramp
• Spring assists
• Adj. 2-5/16" or pintle hitch
• Radial tires

Model 618 (shown with optional mesh ramps)







Pequea Utility Trailers are built with the same commitment to quality as the larger models. With great balance, low profile, and reduced angle loading, they hold up under the demands of all medium hauling needs.









Model
 612T 614T 616 618 620
Length
15' 4"
17' 4"
20'
22'
24'
Width
8' 1"
Height
2' 9"
Hitch height
16"
Tires
205/75
Axle rating
3500
Wheel size
15"
Coupler size
2 5/16"

Weight
1650
1750
1900
2000
2100
Bed height
19"
Bed width
6' 4"

Bed length
12'
14'
16'
18'
20'
Brakes
Standard - both axles
GVW rating
7000 lbs.

Ramps
4' 8" or 6"
Jack
5K drop leg w/ set back mounting









Standard "set back" jack allows driver to lower tailgate without unhitching.

Battery for electric brakes conveniently installed on the
A-frame.























STANDARD FEATURES
• Fully welded steel frame
• 2" pressure treated deck
• Double "I" leaf spring suspension
• Sonically sealed lights		   • White spoke wheels
• Set back top wind jack
• Safety chains
• Primed & painted
• 5K lb. drop leg jack




 BINKLEY & HURST BROS. SELLING PRICES:

SINGLE AXLE

510T  Tiltw/ white spoke wheels  $1,100.00
510R  Rigidframe w/4’mesh ramps $1,350.00
610T  Tiltw/ white spoke wheels $1,200.00
610R  Rigidframe w/4’ mesh ramps $1,450.00
612S  Rigidframe w/4’ mesh ramps $1,550.00

Binkley & Hurst Bros. Inc. doesn’t stock any of the above trailers

Availability is 2 to 3days provided Pequea has them in stock



TAMDOM AXLE

612T  Rigidframe w/ tandem axles, w/4’ mesh ramps $2,350.00
614T  Rigidframe w/ tandem axles, w/4’ mesh ramps $2,450.00
616  Rigidframe w/ tandem axles, w/4’ mesh ramps $2,550.00
618  Rigid frame w/ tandem axles,w/4’ mesh ramps $2,650.00
620  Rigidframe w/ tandem axles, w/4’ mesh ramps $2,800.00

Binkley & Hurst Bros. Inc. doesn’t stock any of the above trailers

Availability is 2 to 3days provided Pequea has them in stock
